If Region Based S3 storage will be used, specify the following parameters for it.

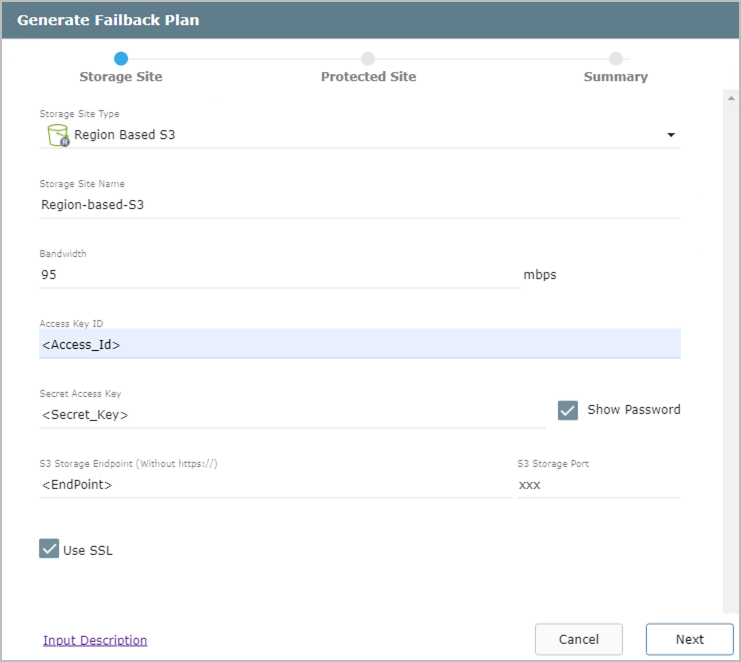

Figure 32: Failback Plan: Region Based S3 Storage.

    • Storage Site Type: Select Region Based S3 from the menu.
    • Storage Site Name: Specify a name.
    • Bandwidth: Enter results determined by the Bandwidth Tester tool.
    • Access Key ID
    • Secret Access Key
    • S3 Storage Endpoint: Address to the S3 storage. Do NOT include the "https://" scheme.
    • S3 Storage Port: Port # to access the storage.
    • Use SSL: Select if needed.

Note: Full details are listed in the Failback Plan Parameters table.


Important: In addition to the storage site parameters defined on this step, a configuration file must be created to declare the region of the S3 object store.
